Frequency is just as vital as voltage and wattage when specifying a power system. A mismatch between a generator's frequency and the connected load introduces severe operational risks. Selecting the wrong frequency leads to catastrophic equipment failure, magnetic core saturation, severe overheating, voided warranties, and extended facility downtime. Evaluating a 50Hz vs 60Hz Generator requires a strict technical framework. You must assess equipment compatibility, regional compliance, voltage correlations, and performance trade-offs to ensure safe, reliable power generation. Field engineers know that ignoring these parameters results in burned stators and melted motor windings. We see this happen when facilities import foreign machinery without verifying the nameplate data against the local grid. Getting the frequency right the first time prevents massive mechanical failures and keeps your operations running smoothly.
Regional and Equipment Dictates: Generator frequency selection is primarily governed by the destination's national grid standard and the specific nameplate ratings of the connected load.
The Voltage-Frequency Link: Frequency is historically tied to regional voltage standards; 50Hz systems typically pair with 220V-240V, while 60Hz systems often pair with 110V-120V (for residential/light commercial) or specific industrial voltages like 480V.
Performance vs. Lifespan: A 60Hz generator typically yields higher power output from the same engine size and allows for smaller transformers, while a 50Hz system offers lower core losses and longer mechanical lifespan due to lower operating RPMs.
Cross-Frequency Risks: Operating 50Hz equipment on a 60Hz power supply (or vice versa) alters the Volts-per-Hertz (V/Hz) ratio, which can drastically degrade motor performance, overheat transformers, and destroy sensitive electronics.
Application Flexibility: For multinational operations, marine vessels, or export manufacturing, dual-frequency (switchable) generators provide a viable, albeit more complex, mitigation strategy.
Table of Contents
The global divide between 50Hz and 60Hz power systems stems from early electrical engineering compromises. During the late 19th and early 20th centuries, engineers sought an optimal frequency that balanced competing physical limitations. Lower frequencies caused visible flicker in early incandescent and arc lighting systems. Higher frequencies increased transmission line voltage losses due to line inductance and the skin effect, where alternating current tends to flow only on the outer layer of a conductor.
North American engineers settled on 60Hz as the ideal compromise to eliminate lighting flicker while maintaining acceptable transmission efficiency. European engineers standardized on 50Hz, aligning better with the metric system's preference for 1-2-5 sequences and prioritizing reduced transmission losses over minor lighting flicker. Today, these historical decisions dictate the fundamental design of all alternating current machinery.

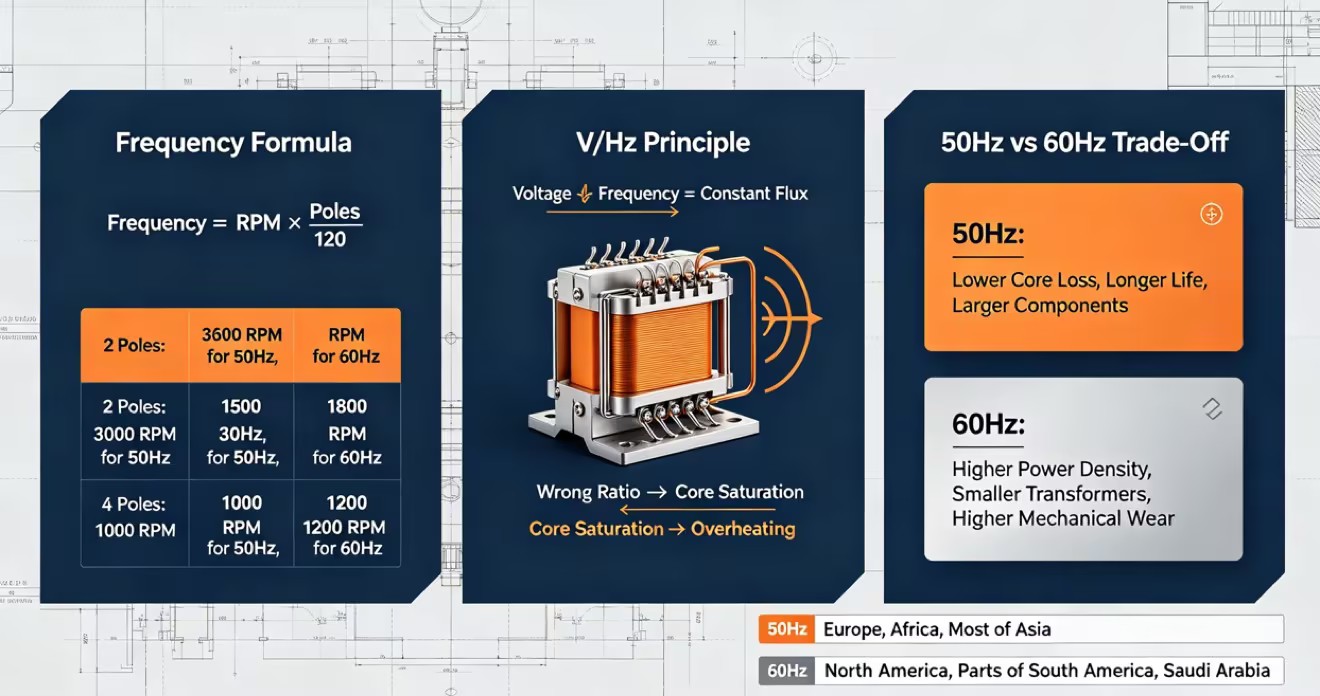

The frequency of an alternating current generator is mathematically locked to the rotational speed of its engine and the number of magnetic poles inside its alternator. The formula governing this relationship is straightforward: Frequency = (Engine RPM × Number of Poles) / 120.
Because the number of poles in an alternator must be an even integer, generator engines must run at specific, fixed speeds to produce the required frequency. Changing a generator's frequency fundamentally alters the mechanical operating dynamics of the prime mover.
Alternator Pole Count vs. Required Engine RPM | ||
Number of Alternator Poles | Required RPM for 50Hz | Required RPM for 60Hz |
|---|---|---|
2 Poles (Portable/Light Duty) | 3000 RPM | 3600 RPM |
4 Poles (Standard Industrial) | 1500 RPM | 1800 RPM |
6 Poles (Heavy Continuous Duty) | 1000 RPM | 1200 RPM |
The 20% increase in rotational speed required for a 60Hz generator directly impacts power output. Internal combustion engines generate mechanical power based on torque multiplied by rotational speed. Assuming the engine block can maintain consistent torque at both speeds, running the engine at 1800 RPM rather than 1500 RPM allows it to perform more work over the same period.
A specific engine block paired with a 60Hz alternator will typically yield a higher kilowatt rating than the exact same engine configured for 50Hz. This higher power density means buyers can extract more electrical output from a smaller physical footprint when operating on a 60Hz standard. However, this increased output requires burning more fuel per minute to sustain the higher mechanical speed under load. The engine breathes faster, the fuel injectors cycle more frequently, and the cooling system must reject more heat.
Frequency profoundly affects the physical size and efficiency of magnetic components, such as transformers and alternator stators. According to Faraday's Law of Induction, the magnetic flux density required to induce a specific voltage is inversely proportional to the frequency. Higher frequencies transfer energy more rapidly, requiring less magnetic material to store and transfer the same amount of power.
Transformers and magnetic cores designed for 60Hz are physically smaller and lighter than their 50Hz counterparts. However, this size advantage comes with a trade-off in core losses. Alternating magnetic fields generate heat through eddy currents and hysteresis. Eddy current losses increase with the square of the frequency, meaning a 60Hz system experiences higher core heating than a 50Hz system. Facility engineers must account for this extra heat dissipation when designing electrical rooms and specifying ventilation requirements.
Procuring the correct generator requires mapping the destination's national grid standard. The world is sharply divided by frequency standards, largely following historical colonial and industrial influences. Shipping a generator to a foreign site without verifying the local utility frequency guarantees a failed commissioning process.
60Hz Regions: The United States, Canada, Mexico, parts of South America (including Brazil and Colombia), Taiwan, the Philippines, South Korea, and Saudi Arabia.
50Hz Regions: The entirety of Europe, Africa, Oceania (including Australia and New Zealand), and the vast majority of Asia (including China and India).
Mixed Regions: Japan is uniquely split, operating on 50Hz in the east (Tokyo) and 60Hz in the west (Osaka), requiring specialized frequency converter stations to bridge the national grid.
Frequency rarely exists in isolation; it is tightly coupled with regional voltage standards. When importing or exporting equipment, you must verify both metrics simultaneously. Specifying a generator requires matching both the frequency and the precise voltage required by the facility's main distribution panel.
Common Regional Voltage and Frequency Pairings | |||
Region / Standard | Grid Frequency | Standard Single-Phase Voltage | Standard Three-Phase Voltage |
|---|---|---|---|
North America | 60Hz | 120V / 240V | 208V / 480V / 600V |
Europe & UK | 50Hz | 230V | 400V |
Australia | 50Hz | 230V / 240V | 400V / 415V |
Parts of South America | 60Hz | 127V / 220V | 220V / 380V / 440V |
For applications where the generator must run in parallel with the local utility grid—such as peak shaving, load shedding, or closed-transition standby power—frequency compliance is non-negotiable. A generator cannot be synchronized with the grid unless its frequency matches the utility frequency exactly.
The synchronizing panel monitors the utility grid and adjusts the generator's engine governor to match the grid's frequency and phase angle. If a facility in a 50Hz region installs a 60Hz generator, synchronization is physically impossible. Attempting to close the breaker between mismatched frequencies results in a violent electrical fault known as a crash sync. The out-of-phase connection creates massive mechanical torque spikes that can instantly shear the alternator shaft, destroy the engine couplings, and blow apart the facility's switchgear.
Regulatory bodies dictate equipment design tolerances based on regional frequencies. The National Electrical Manufacturers Association (NEMA) primarily governs North American equipment, optimizing designs for 60Hz operation, 480V industrial power, and heavy-duty continuous loads. The International Electrotechnical Commission (IEC) governs global standards, optimizing for 50Hz operation and 400V systems.
When procuring a generator for an international project, you must ensure the alternator and control panels carry the correct certifications. NEMA standards often require larger physical clearances and different insulation classes compared to IEC standards. Installing NEMA-rated equipment in an IEC-regulated jurisdiction often leads to compliance failures during electrical inspections, regardless of whether the generator physically functions.
The most critical concept in evaluating frequency compatibility is the Volts-per-Hertz (V/Hz) ratio. Induction equipment, such as motors and transformers, relies on a specific magnetic flux density to operate efficiently. This flux density is directly proportional to the applied voltage and inversely proportional to the frequency.
To maintain optimal magnetic flux, the ratio of voltage to frequency must remain constant. For example, a motor designed for 480V at 60Hz has a V/Hz ratio of 8 (480 / 60 = 8). A motor designed for 400V at 50Hz also has a V/Hz ratio of 8 (400 / 50 = 8). If you operate this equipment at a different frequency without proportionally adjusting the voltage, you alter the magnetic flux, leading to severe operational failures.
Running a motor at the wrong frequency alters its rotational speed and load characteristics. The synchronous speed of an alternating current motor is dictated by the supply frequency. Operating a 50Hz motor on a 60Hz generator increases the motor's speed by exactly 20%.
While 20% may seem manageable, the power required by centrifugal loads like pumps and HVAC fans increases by the cube of the speed according to the affinity laws. A 20% increase in speed results in a 73% increase in power demand. This massive overload will rapidly overheat the motor windings, trip the thermal protection circuits, and eventually melt the internal insulation.
Impact of Running a 50Hz Centrifugal Pump on a 60Hz Generator | ||
Operational Parameter | 50Hz Base Operation | 60Hz Operation (20% Speed Increase) |
|---|---|---|
Fluid Flow Rate | 100% (Base) | 120% (Increases proportionally with speed) |
System Head Pressure | 100% (Base) | 144% (Increases by the square of the speed) |
Required Motor Power | 100% (Base) | 173% (Increases by the cube of the speed) |
Conversely, operating a 60Hz motor on a 50Hz generator slows the motor down by 20%. This reduces the effectiveness of the motor's internal cooling fan. If the voltage is not proportionally reduced, the V/Hz ratio increases, causing the magnetic core to saturate. Saturation leads to excessive current draw, extreme heat generation, and rapid failure.
Modern power electronics handle frequency variations differently than induction motors. Many contemporary switch-mode power supplies—commonly found in servers, laptops, and LED lighting—rectify incoming alternating current directly to direct current. These universal supplies are typically rated for 100V-240V and 50/60Hz, making them highly tolerant of frequency changes.
Industrial electronics are far more sensitive. Variable Frequency Drives (VFDs) and Uninterruptible Power Supplies (UPS) rely on specific input frequencies to synchronize their internal rectifiers and timing circuits. Supplying 60Hz power to a legacy 50Hz UPS will often cause the system to reject the input power, drop the load, or trigger a continuous fault alarm. Precision manufacturing equipment, medical imaging devices, and older clock-dependent mechanisms will also fail or operate erratically if the frequency deviates from the nameplate rating.
Choosing a 60Hz Generator offers distinct performance advantages, primarily centered around power density. Because the engine operates at 1800 RPM, it generates more mechanical shaft power than it would at 1500 RPM. This allows manufacturers to extract a higher kilowatt rating from the exact same engine block and alternator frame.
The higher frequency allows for smaller magnetic components. Transformers, inductors, and the alternator stator require less iron core material to transfer the same amount of energy. This reduces the overall weight and physical footprint of the electrical infrastructure. Space-constrained environments like marine vessels, mobile rental fleets, and dense urban data centers benefit heavily from this compact design.
The primary drawback of a 60Hz system is the increased mechanical wear associated with higher rotational speeds. Running an industrial diesel engine at 1800 RPM introduces more friction, higher piston speeds, and increased bearing stress compared to a 1500 RPM application. Over tens of thousands of operating hours, this translates to shorter intervals between major engine overhauls.
Electrically, 60Hz power suffers from higher transmission losses over long distances. The skin effect forces alternating current to the outer edges of the conductor, effectively reducing the usable cross-sectional area of the cable. At 60Hz, this effect is more pronounced than at 50Hz, leading to higher voltage drops across long cable runs. Facility engineers must compensate by up-sizing cable gauges, which increases copper costs for large site installations.
The most significant advantage of a 50Hz generator is mechanical longevity. Operating at a slower 1500 RPM reduces piston speed, lowers internal operating temperatures, and minimizes vibration. This slower rotational speed extends the lifespan of internal engine components, allowing the prime mover to run longer between maintenance cycles and major rebuilds.
From an electrical standpoint, 50Hz systems experience lower magnetic core losses. Because eddy currents scale with the square of the frequency, a 50Hz transformer generates less internal heat than a 60Hz equivalent. The reduced skin effect allows for more efficient power transmission over long distances, making 50Hz ideal for sprawling industrial complexes, remote mining operations, and utility-scale power distribution.
The physical size of 50Hz electrical components presents a notable limitation. To prevent magnetic saturation at the lower frequency, transformers and alternator stators require larger, heavier iron cores. This increases the upfront capital cost of the magnetic components and demands a larger physical footprint for the generator set and downstream switchgear.
A 50Hz generator produces less electrical output from a given engine displacement compared to a 60Hz setup. You must often specify a physically larger engine block to achieve the same kilowatt rating, which increases the weight and dimensions of the generator enclosure. Rigging and installing these larger units requires heavier cranes and reinforced concrete pads.
The most severe risk in generator procurement is failing to align the power source with the facility load. Before issuing a purchase order, facility managers must conduct a comprehensive equipment audit. This involves physically inspecting the nameplates of all critical machinery, HVAC units, pumps, and industrial drives.
If a facility contains a mix of 50Hz and 60Hz equipment—often the result of importing specialized manufacturing lines—a single generator cannot serve all loads directly. Mitigation requires isolating the non-standard equipment onto a dedicated electrical panel. You must then install a solid-state frequency converter or a rotary motor-generator set to supply the correct V/Hz ratio to those specific machines.
For operations requiring maximum flexibility, manufacturers offer dual-frequency generators capable of switching between 50Hz and 60Hz. These units are prevalent in international rental fleets, marine shipping, and manufacturing test bays where loads change constantly.
Operating a switchable generator requires precise mechanical and electrical adjustments. The operator must change the engine governor settings to shift the speed between 1500 RPM and 1800 RPM. Simultaneously, the Automatic Voltage Regulator must be recalibrated, and the alternator stator leads may require reconnection to maintain the correct V/Hz ratio and output voltage. Switching frequencies is not an automated, on-the-fly process. It requires shutting down the unit, performing the reconfiguration, and verifying the output with a multimeter before applying the load.
Procuring a generator that operates on a non-standard frequency for your region introduces severe maintenance complications. If a facility in Europe imports a 60Hz generator to power specialized American machinery, local service technicians may lack familiarity with the specific 1800 RPM engine configurations and NEMA-rated alternators.
Sourcing replacement parts becomes a logistical challenge. Local distributors stock components tailored to the regional grid standard. Ordering non-standard voltage regulators, governor controllers, or alternator windings requires international shipping, extending downtime during critical failures. Operating equipment outside its intended regional specifications often voids the Original Equipment Manufacturer warranty, leaving you fully liable for all repair costs.
Conduct a comprehensive load audit by physically logging the frequency, voltage, and phase requirements from the nameplates of all critical facility equipment.
Consult with a certified electrical engineer to evaluate V/Hz tolerances and identify any legacy machinery susceptible to frequency mismatch.
Request detailed alternator specification sheets and thermal damage curves from the manufacturer before finalizing the purchase order.
Verify that local service networks stock replacement parts for the specific engine RPM and alternator configuration you intend to deploy.
A: No. Running a 50Hz motor on a 60Hz power source increases its rotational speed by 20%. This alters the Volts-per-Hertz ratio and drastically increases the mechanical load. Centrifugal loads will demand 73% more power. The motor will draw excessive current, overheat rapidly, and suffer catastrophic insulation failure. Never mix frequencies on induction equipment.
A: Not always. Modern universal switch-mode power supplies, like laptop chargers, handle 100-240V and 50/60Hz easily. However, heavy machinery, industrial drives, and legacy 230V UPS systems are often strictly rated for 50Hz. Applying 60Hz to these specific devices causes timing faults, component saturation, and immediate system failure. Always check the nameplate.
A: Fuel consumption depends primarily on the actual kilowatt load applied to the alternator. However, because a 60Hz engine runs at a higher speed of 1800 RPM compared to 1500 RPM, it experiences slightly higher internal mechanical friction. This introduces minor efficiency losses, meaning it may burn slightly more fuel under light loads.
A: You must adjust the engine governor to reduce the operating speed from 1800 RPM to 1500 RPM. Next, you have to recalibrate the Automatic Voltage Regulator to output the correct voltage for the new frequency, ensuring the V/Hz ratio remains stable. This requires technical expertise and often voids manufacturer warranties.
A: Higher frequencies allow the magnetic core to transfer energy much faster. The magnetic flux density required to induce a specific voltage is inversely proportional to the frequency. Therefore, a 60Hz system requires less physical iron core material to handle the exact same amount of power compared to a 50Hz system.
